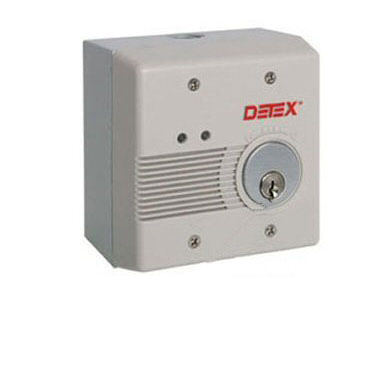

Detex EAX-2500S Surface Mounted "Compact" AC Door Alarm

Detex EAX-2500S Surface Mounted "Compact" AC Door Alarm
Item# EAX-2500S
Reg. $420.00
Sale Price: $291.06
Transformer-Contacts:  Mortise-Key-Cylinder:  Color:
Availability: Usually ships the next business day

Product Description

The Detex EAX-2500S is designed for applications that require a 9VDC battery or external AC/DC powered alarmed exit device on secured doors. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The EAX-2500S, with it's smaller size and designed to fit in a standard 4"x4" outlet box makes it the choice for quick and easy installations on emergency exit and restricted doors.

Features and Benefits:

  • Low-cost, door alarm with piezo horn that sounds to warn of unauthorized use of a door
  • Surface and Flush mount available. Easy to install using ordinary tools.
  • Fits into a standard 4"x4" double switch/outlet box for both surface and flush installations
  • Now available with field selectable options
  • Available in 2 colors, gray and black
  • Patented cam assembly automatically adjusts for different sizes of cylinders without the use of spacers
  • Mortise cylinder required with standard Yale cam for Inside Key Control
  • Alarm can only be silenced by proper control key
  • Modern graphics on cover to demonstrate key rotation and operation
  • Improved electronic circuits for longer battery life, LED functions
  • 9VDC battery powered with optional AC/DC external power
  • Tamper switch monitors cover manipulation
  • Tamper resistant housing and cover protects electronics and battery from manipulation
  • Extended bypass, now a standard feature, allows alarm to remain bypassed when door is open and automatically rearm upon door closing
  • Custom settings may be ordered and programmed at the factory
  • Upgraded features are now included and field selectable

Packaging Information:

  • The EAX-2500 package includes: EAX-2500 Exit Alarm, Peel & stick door sign, and Key Stop (formerly 90 degree detent)

Technical Specifications:

  • Approximate 100dB piezo alarm
  • Mortise cylinder key switch arming
  • 9 VDC battery powered with optional AC/DC external power (12-24V)
  • Low Battery Alert (field selectable - if AC used)
  • Manual arming, disarming & rearming
  • LED visual arming indicators
  • Audible arming indicator
  • Remote bypass compatible
  • Alarm relay output
  • Alarm accepts 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale cam
  • Field selectable 2-minute auto rearm
  • Field selectable status indicators
